Efficient connection of base plates to steel beams without welding and drilling

Beam clamp FMBC M12 and M16

Name: Beam clamp FMBC M12 and M16
Brand: fischer

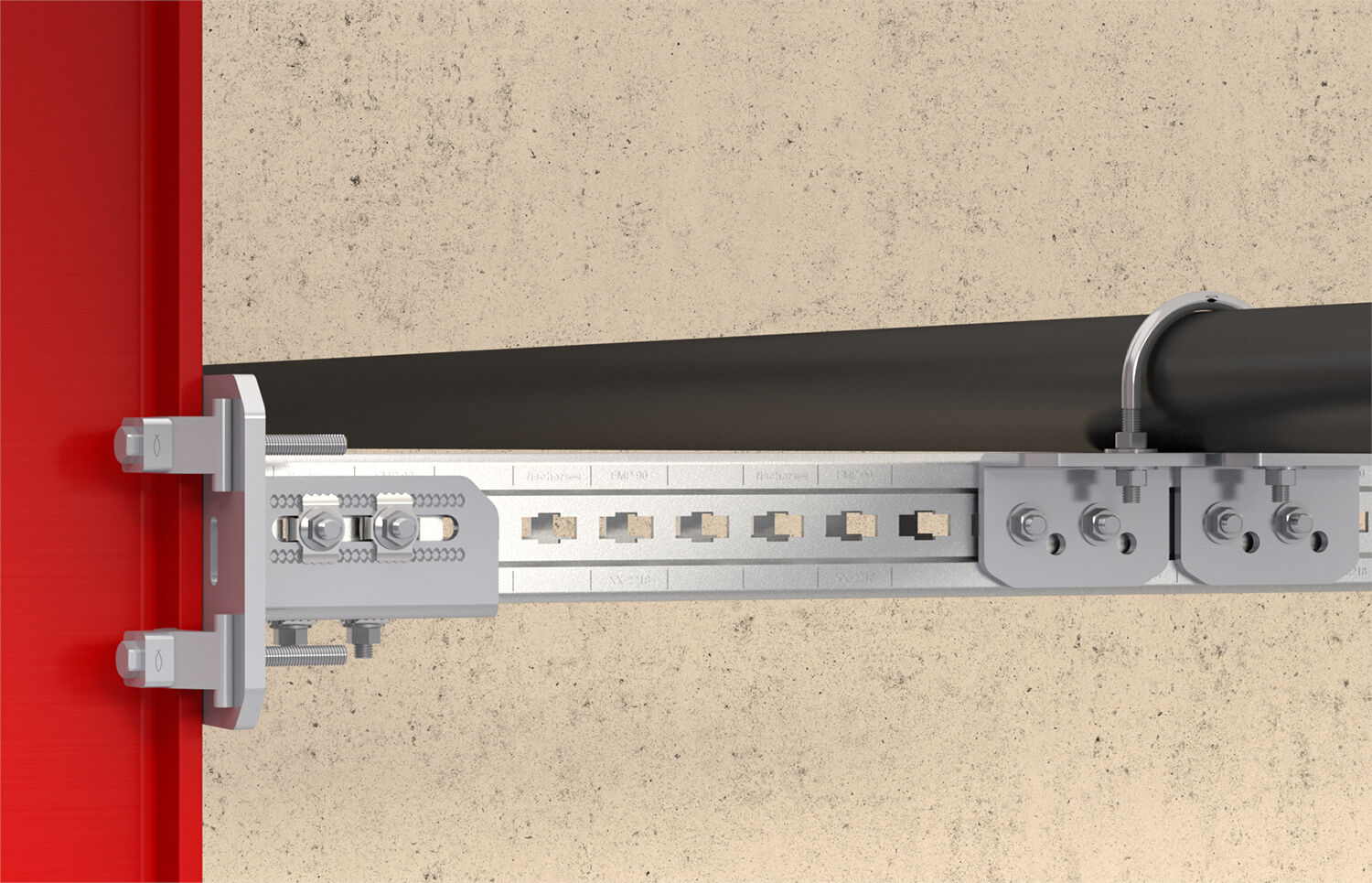

fischer beam clamps are optimal connectors from channel to channel as well as channel to substrate or steel work. The connection to the FMP massive profile is made throughout with the fischer FMHB hammer-head push connector or through beam clamps and anchors to the substrate. The hot-dip galvanised version with high layer thickness is suitable for outdoor installations and in corrosive environments.

Produktne variante

Download of image data

Produktne variante

(0) produktnih variant (s)

Thread

Length

Clamping range

Amount

GTIN (EAN-Code)

Poglej (0) od (1) rezultat (s)

Advantages

The design of the FMBC beam clamp M12 and M16 makes it possible to fasten to steel beams without drilling or welding.
The large clamping range of the FMBC beam clamp M12 and M16 allows it to be attached to all common beam flanges.
The design of the FMBC beam clamp M12 and M16 in the 3 matching bracket heights for the FMP massive profiles ensures fast mounting and easy moving of the profiles for adjustment.

Properties

Material: cast iron with ductile iron QT450-10 (material no. 5.3107) acc. to EN 1563
Zinc plating: hot-dip galvanised, acc. to DIN EN ISO 1461
Material screw: steel grade 8.8

Thread ( A )	M12
Length ( l )	130 mm
Clamping range ( D )	3 - 36 mm
Amount	16 pcs.
GTIN (EAN-Code)	4048962339048

Thread ( A )	M16
Length ( l )	150 mm
Clamping range ( D )	3 - 36 mm
Amount	12 pcs.
GTIN (EAN-Code)	4048962339055
