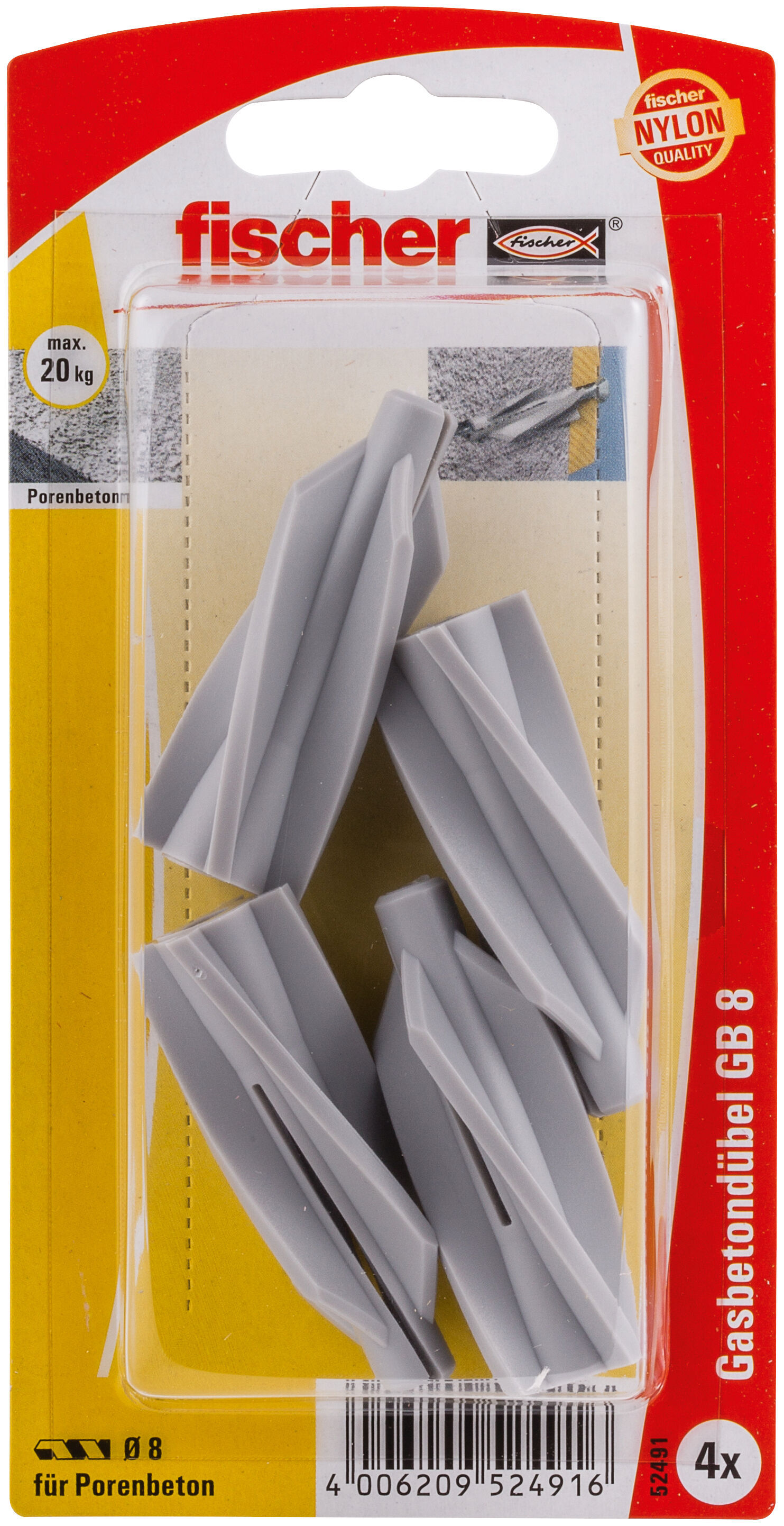

fischer aircrete anchor GB 8 K SB-card

Name: fischer aircrete anchor GB 8 K SB-card
Brand: fischer

Varianti del prodotto

Download of image data

Top Features

Building Authority approval for safety-relevant applications.
Optimum pressure distribution and high load-bearing capacity. Spiral outer ribs cut a positive fit in the aerated concrete.
No setting tool necessary: simply hammer in using the hammer.
Approved with the fischer safety screw.

The special plug for different fixings in aerated concrete.

Advantages

The spiral-shaped outer ribs cut a positive fit in the soft building material, thus ensuring the best pressure distribution and load-bearing capacity.
Can be applied with a hammer - there is no need for special tools, thus saving time and money for the installation.
The GB can also be used safely outside (e.g. in façade installation) when combined with the approved fischer safety screw in A4.

The fischer Aircrete anchor GB is an officially approved special anchor for safety-relevant fixings in aerated concrete. The GB, made from high-quality nylon, is hammered in rotary mode after pre-drilling. The characteristic outer ribs ensure an interlocking connection between the building material and anchor. The fischer Aircrete anchor GB is ideal for fixing façade and roof constructions as well as railings in aerated concrete.

Applications

Light cable trays
Pipelines
Guard rails
Façade and roof constructions made of wood and metal
Light canopy brackets
Letter boxes
Trellis

Building materials

Suitable for:

Aerated concrete with compressive strength 2 to 4 N/mm²
Aerated concrete wall or ceiling boards with compressive strength 3.3 to 4.4 N/mm²

Maggiori informazioni su materiali di supporto, ecc. sono disponibili nella documentazione tecnica.

Drill diameter ( d₀ )	8 mm
Min. drill hole depth ( h₁ )	60 mm
Anchor length ( l )	50 mm
fischer safety screw ( d_s )	5 mm
Contents	4 x Aircrete anchor GB 8
Amount	4 pcs
Packaging	Blister card
GTIN (EAN-Code)	4006209524916
